A sample of our projects.

Below are some iso views of projects we have recently undertaken. At the bottom are some links to other projects and typical drawing examples in PDF format

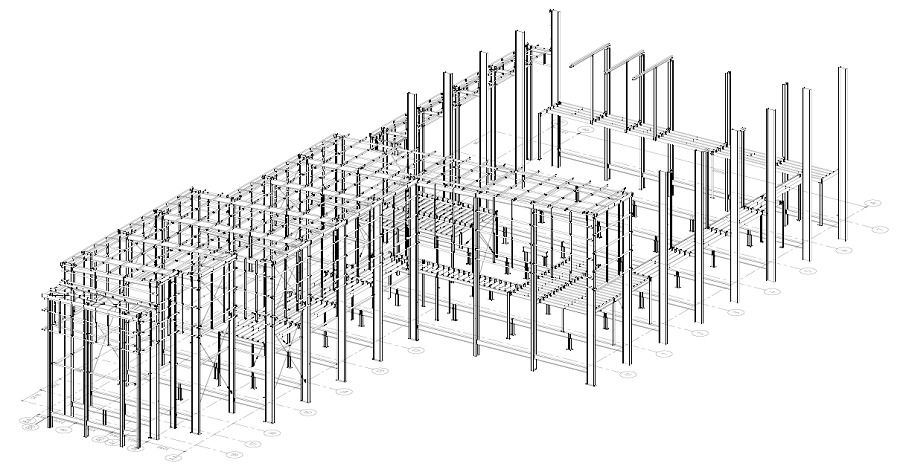

  • Cootamundra Abbattoirs - Beef Kill An iso view of the extension to the beef kill floor at the Abbattoirs

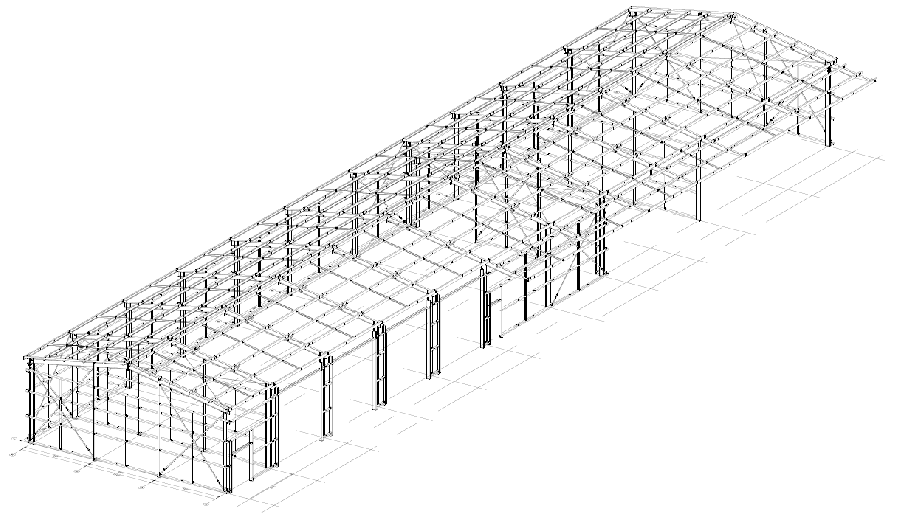

  • Customer Workshop A new workshop for one of our key customers

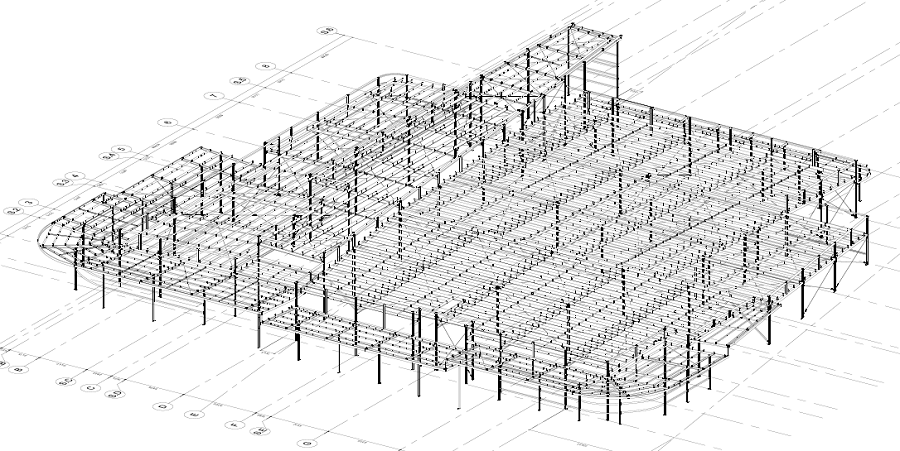

  • Eastlakes - ISO

    Eastlakes Football Club - Canberra A new club facility undertaken directly for the builder as part of the final design stage to assist in speeding up program schedule on the build.

Sample PDF's

Here are a number of PDF's detailing the standard types of working drawings that 3D Specialists produces.
